Anleitung Löwen Turnier Dart 2000
18. Schaltbilder, Bestükungspläne
18.1. LP Piezo (908 945)
![Dartautomat Schaltbild](https://www.darts1.de/dartautomat/Dartautomat-Schaltbild.png)
![Dartautomat Piezo Board](https://www.darts1.de/dartautomat/Dartautomat-Piezo-Board.png)
18.2. LP Lampencontroller vollst. (908 689)
![Lamp Controller](https://www.darts1.de/dartautomat/Lamp-Controller.png)
![Components side](https://www.darts1.de/dartautomat/Components-side.png)

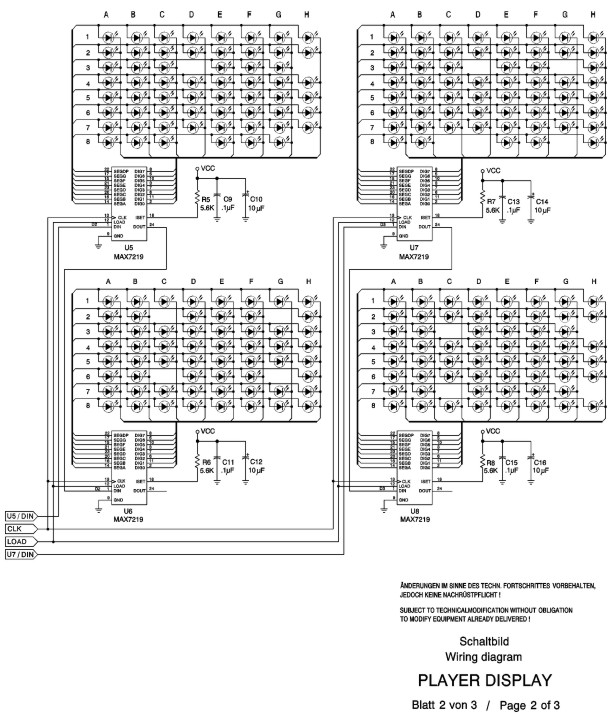

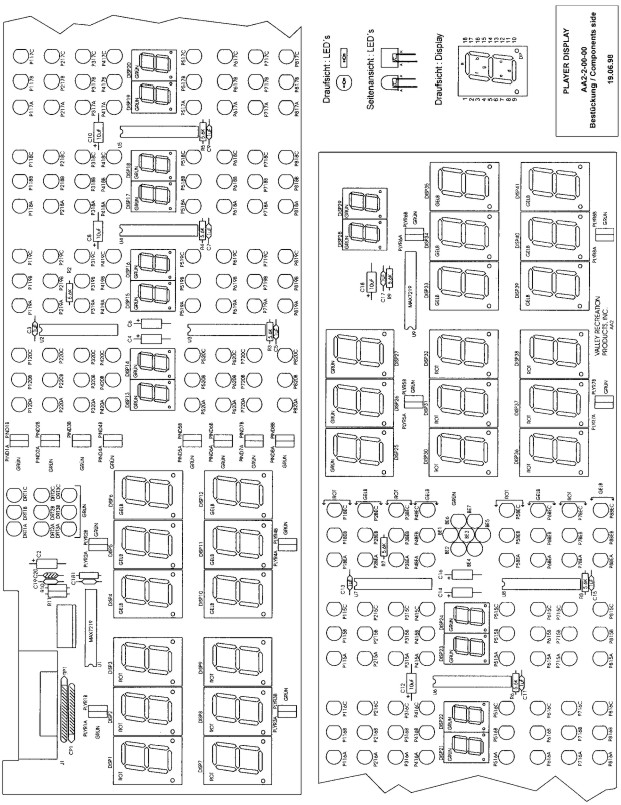

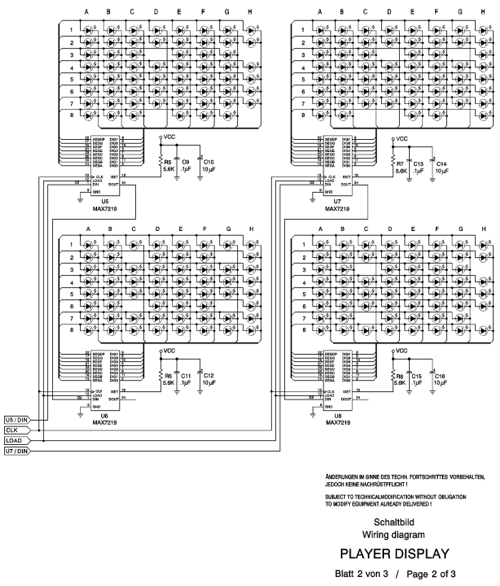

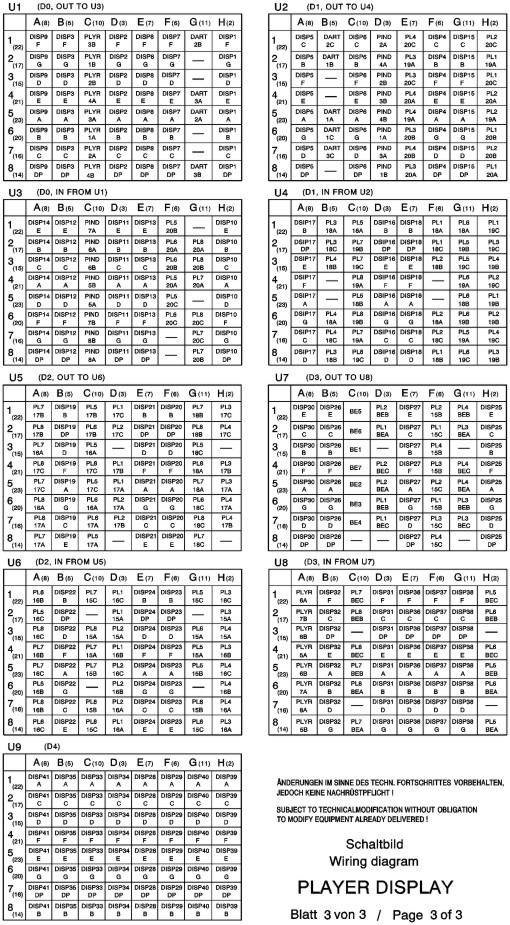

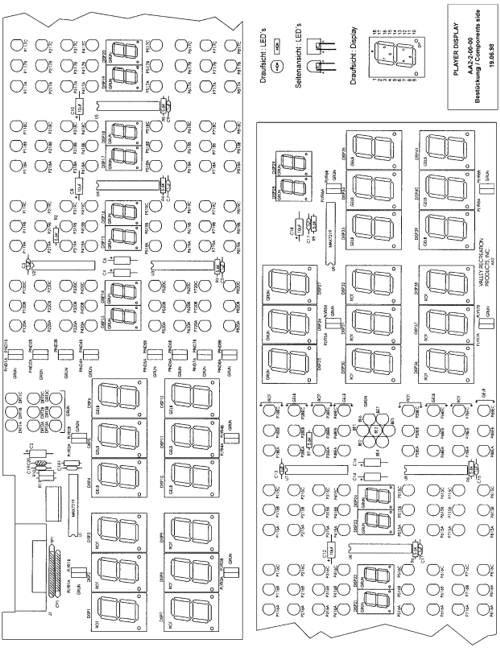

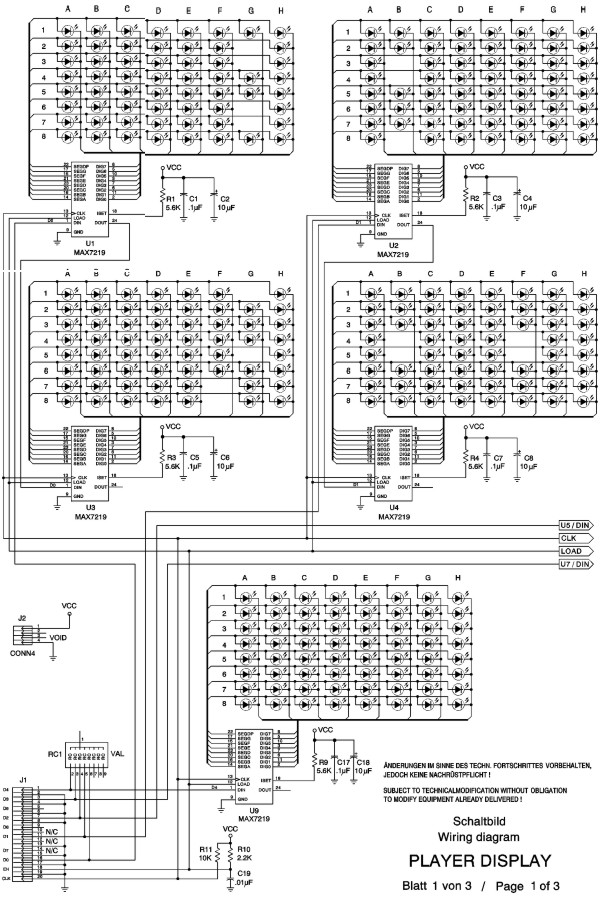

18.3. Schaltbild und Bestückungsdruck für die obere Anzeigeplatine (908 433)
18.4. LP Anzeige (908 433)
